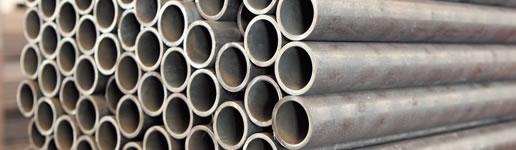

High Pressure Boiler Tube High pressure boiler tube is a kind of seamless steel pipe. The manufacturing method is similar to that of seamless tube, but it is manufactured with high requirements of steel. It is often used in high temperature and high pressure conditions and high temperature flue gas and steam make it easy to be corroded. JST boiler tubes are produced with high endurance strength, high oxidation corrosion resistance performance and high stability. This high pressure seamless steel pipe is mainly used for manufacturing superheater tube, reheater tube, gas-guide tube and main steam pipe in high pressure and ultrahigh pressure boilers. Low and medium pressure boiler tube is made through the process of punching steel ingot or solid pipe billet into hollow billet, hot rolling, and cold rolling or cold drawing.

Manufacturing Process of Seamless Steel Pipe for Boiler We adopt hot rolling, cold drawing and hot expanding manufacturing process.

Standards There are mainly three standards for boiler tubes including ASME SA106, ASME SA210, ASME SA213 and DIN17175 standard.

Applications JST seamless steel pipe can be used as heating surface pipe, economizer, superheater, reheater, petrochemical industrial pipe and others in high pressure boilers (The working pressure is above 9.8 Mpa and the working temperature is between 450℃ to 650℃.). It can also be applied to the heating surface pipe in low and medium pressure boilers (The working pressure is not more than 5.88 Mpa and the working temperature is below 450℃.).

Mechanical Properties of Boiler Tube
Standard Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%) Hardness
ASME SA210 SA210A-1 ≥415 ≥255 ≥30 ≤143HB
ASME SA210 SA210C ≥485 ≥275 ≥30 ≤179HB
ASME SA213 SA213 T11 ≥415 ≥205 ≥30 ≤163HB
ASME SA213 SA213 T12 ≥415 ≥220 ≥30 ≤163HB
ASME SA213 SA213 T22 ≥415 ≥205 ≥30 ≤163HB
ASME SA213 SA213 T23 ≥510 ≥400 ≥20 ≤220HB
ASME SA213 SA213 T91 ≥585 ≥415 ≥20 ≤250HB
ASME SA213 SA213 T92 ≥620 ≥440 ≥20 ≤250HB
DIN17175 ST45.8/Ⅲ 410~530 ≥255 ≥21 /
  20 410~550 ≥245 ≥20 /
  20MnG ≥415 ≥240 ≥22 /
  25MnG ≥485 ≥275 ≥20 /
  15CrMoG 440~640 ≥235 ≥21 /
  12Cr2MoG 450~600 ≥280 ≥20 /
  12Cr1MoVG 470~640 ≥255 ≥21 /
  12Cr2MoWVTiB 540~735 ≥345 ≥18 /
  10Cr9Mo1VNb ≥585 ≥415 ≥20 /
  15Mo3 450~600 ≥270 ≥22 /
  13CrMo44 440~590 ≥290 ≥22 /
  10CrMo910 480~630 ≥280 ≥20 /

Established in 1984, Jiangyin Changjiang Steel Tube Making Factory has been engaged in manufacturing mechanical steel pipes for about 30 years. We mainly supply structure pipe, fluid pipe, high pressure boiler pipe, API pipe, marine pipe, alloy pipe, tubing, casing, line pipe, etc. Our mechanical steel tubings are extensively used in metallurgy, port, ship-breaking, manufacturing, chemical engineering, transportation and other industries. They are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.

Seamless Steel Pipe for Pressure Vessel

Standard: JIS G3429 We mainly produce different grades of seamless steel pipes for pressure vessel, such as 37Mn, 34Mn2V, 30CrMo, 35CrMo, STH11, STH12, STH21, STH22, etc.

Applications This seamless steel tube is mainly used for the production of fuel gas or hydraulic cylinders, high pressure vessel and cylinder seamless steel pipe.

Steel Manufacturing Method Our steel is smelted by electric furnace or oxygen converter.

Manufacturing Method of Steel Pipe Seamless steel pipe for pressure vessel is made by hot rolling or cold rolling (cold drawing) methods.

Delivery Condition Hot-rolled steel pipe is delivered in hot-rolled condition, while cold-rolled steel tubes are delivered in normalized or annealed conditions.

Chemical Composition
Standard Grade Chemical Composition
C Si Mn P、S Cu Ni Mo Cr V
JIS G3429 STH11 ≤ 0.50 0.10-0.35 ≤ 1.80 ≤ 0.035 / / / / /
STH12 0.30-0.41 0.10-0.35 1.35-1.70 ≤ 0.030 / / / / /
STH21 0.25-0.35 0.15-0.35 0.40-0.90 ≤ 0.030 / ≤ 0.25 0.15-0.30 0.80-1.20 /
STH22 0.33-0.38 0.15-0.35 0.40-0.90 ≤ 0.030 / ≤ 0.25 0.15-0.30 0.80-1.20 /

Jiangyin Changjiang Steel Tube Making Factory is a leading supplier and exporter of seamless steel pipes in China. Our company is a large scale enterprise possessing the production capacity of 600,000 tons special seamless steel pipes. We mainly manufacture structure pipe, fluid pipe, high pressure boiler tube, API pipe, marine pipe, alloy pipe, tubing, casing, line pipe, etc. With advanced technological equipment, tremendous technical strength and reliable product quality, our seamless steel pipes have been exported to the Middle East, CIS, Southeast Asia, Africa, South America, North America, Europe, Australia and many other countries and regions.
