Coupling typesThere are three kinds of couplings that include line pipe coupling, casing coupling and tubing coupling. We mainly provide API 5CT couplings. The common casing grade has J55, K55, N80, L80 and P110 etc.

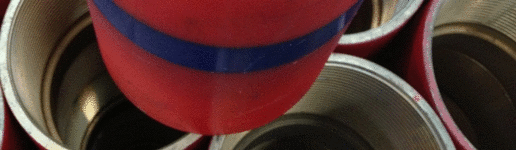

1.Casing Coupling

  • Applications

  • This coupling is a kind of cylinder with internal thread which is mainly used for joining two threaded oil casing pipes.

  • Standards

  • We mainly produce API SPEC 5CT and API SPEC 5B casing coupling.

  • Materials

  • This kind of product is suitable for H40, J55, K55, N80-1, N80Q, L80 and P110 material.

  • Specifications

  • The external diameter is 127~365.12mm（4 1/2"~13 3/8"）.

  • Tubing Joint

  • The tubing joint has STC (short thread connector), LTC (long thread connector), and BTC (buttress thread coupling).

  • Surface

  • The production inner and outside surface adopts phosphating method.

  • Product Package

  • We utilize carton, wooden box, salver or other ways according to clients’ requirement.

2.Tubing Coupling
  • Description

  • It is used for connecting oil pipes together. It has solved the problem of existing couplings being to easy to break because of the stress concentration.

  • Structure

  • We mainly produce API SPEC 5CT and API SPEC 5B casing coupling.

  • Materials

  • The ends of oil pipe connect with the inside wall of coupling uses the tapered thread way and the ends of coupling connect with oil pipe adopts the same thread, same thread pitch and parallel thread way to connect. This kind of structure can remit the stress concentration of the external thread root caused by using single taper thread to connect oil pipe. So it is not easy to break with good connection efficiency and also can prevent the accident of tubing breaking and falling.

  • Application

  • The tubing coupling is a kind of cylinder with internal thread which is mainly used for joining two threaded oil casing pipes.

  • Standards

  • We mainly produce API SPEC 5CT and API SPEC 5B tubing coupling.

  • Materials

  • Our product is mainly suitable for H40, J55, N80-1, N80Q, L80 and P110 material.

  • Specifications

  • The external diameter is 55.88~141.3mm (1.9"~4 1/2").

  • Tubing Joint

  • The tubing joint includes NUE, EUE and SCC.

Oil Field CouplingsCasing Couplings

API Casing Couplings Short Thread Casing Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Coupling (lbs) Palletized Carton Quantity Palletized Carton Weight
4 1/2 5.000 6.250 8.05 343 2716
5 5.563 6.500 10.18 210 2168
5 1/2 6.050 6.750 11.44 216 2501
6 5/8 7.390 7.250 19.97 115 2322
7 7.875 7.250 18.34 120 2231
7 5/8 8.500 7.500 26.93 80 2322
8 5/8 9.625 7.750 35.58 60 2132
9 5/8 10.625 7.750 39.51 50 2006
10 3/4 11.750 8.000 49.61 45 2079
11 3/4 12.750 8.000 50.49 35 1767
13 3/8 14.375 8.000 56.23 25 1436
16 17.000 9.000 78.98 - -
20 21.000 9.000 98.25 - -
API Casing Couplings Long Thread Casing Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Coupling (lbs) Palletized Carton Quantity Palletized Carton Weight
4 1/2 5.000 7.000 9.07 294 2697
5 5.563 7.750 12.56 210 2573
5 1/2 6.050 8.000 14.03 180 2555
6 5/8 7.390 8.750 24.82 100 2315
7 7.875 9.000 23.67 100 2351
7 5/8 8.500 9.250 34.23 80 2807
8 5/8 9.625 10.000 47.48 48 2337
9 5/8 10.625 10.500 55.77 40 2302

API Casing Couplings Buttress Thread Casing Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Coupling (lbs) Palletized Carton Quantity Palletized Carton Weight
4 1/2 5.000 8.875 10.11 196 2007
5 5.563 9.125 12.99 144 2840
5 1/2 6.050 9.250 14.14 144 2061
6 5/8 7.390 9.625 24.46 92 2295
7 7.875 10.000 23.22 80 2068
7 5/8 8.500 10.375 64.84 64 2221
8 5/8 9.625 10.625 45.94 48 2414
9 5/8 10.625 10.625 50.99 40 2256
10 3/4 11.750 10.625 56.68 40 2307
11 3/4 12.750 10.625 61.74 36 2179
13 3/8 14.375 10.625 69.95 20 1429

Oil Field CouplingsTubing Couplings
API EUE Tubing Couplings Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Piece (lbs) Palletized Carton Quantity Palletized Carton Weight
2 3/8 3.063 4.875 3.42 1,444 3942
2 7/8 3.668 5.500 5.29 792 4220
3 1/2 4.500 5.750 9.02 448 3860
4 1/2 5.563 6.500 13.31 252 3456

API Non-Upset Tubing Couplings Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Piece (lbs) Palletized Carton Quantity Palletized Carton Weight
2 3/8 2.875 4.500 2.82 1,512 4264
2 7/8 3.500 5.500 5.15 800 4120
3 1/2 4.250 5.625 8.17 502 4101
4 1/2 5.200 6.500 10.76 252 2712

Improved Buttress Tubing Couplings Size OD (inches) Coupling Size OD (inches) Length (inches) Weight per Piece (lbs) Palletized Carton Quantity Palletized Carton Weight
2 3/8 2.875 8.500 5.46 - -
2 7/8 3.500 8.500 8.14 - -
3 1/2 4.250 8.500 11.74 - -
4 1/2 5.200 9.500 15.72 - -


Jiangyin Changjiang Steel Tube Making Factory owns 88 set of production and testing equipments, which include 36 sets of precision digital controlled lathes and 4 Japanese Jingshen machines. These equipments can minimize the thread height, screw pitch, taper and tightness distance error in minimum range.
The traditional API thread control method is to control the one-parameter of thread (such as tooth depth, screw pitch, taper and so on) and the precision of tightness distance. The pitch diameter is the most important specification that can influence the tightness distance and also there are other specifications can affect the tightness distance, such as taper, tooth depth, screw pitch, pipe ovality, surface lubrication of thread and plating thickness.
