There are many standards applicable for fluid seamless steel pipes, such as ASTM A106, ASTM A179, ASTM A192, ASTM A333, ASTM A335, JIS G3452, BS 3059, DIN 1629, DIN 17175 and API 5L. We mainly produce various grades of fluid steel pipes, such as 10#, 20#, Q295, Q345, Q390, Q420, Q460, etc.

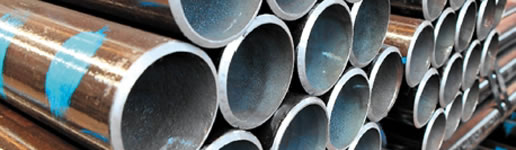

Description Fluid conveying pipe is a kind of fluid seamless steel pipe. With hollow section and no welding seam, it is often used for conveying fluid, such as petroleum, natural gas, water and some solid materials. Fluid steel pipe is of light weight and is widely utilized for producing structural components and mechanical parts, such as petroleum drill rod, automobile transmission shaft, bicycle frame and steel scaffold used in construction. We use fluid seamless steel pipes to produce annular parts, which improves the material utilization rate, simplifies the manufacturing procedures, and saves material and processing time. Fluid steel pipe can also be used to convey coal gas, oil, air, warm steam and other pressure fluid.

Manufacturing Technology We adopt heat treatment (annealing and normalizing) to process fluid seamless steel pipes.

Dimension Deviation of Fluid Steel Pipe
Type Size (mm) Allowable Deviation of Fluid Pipe
General Class High Class
Hot-Rolled Pipe OD Total ± 1% ( Min. ± 0.50 mm ) —
WS Total +15% -12.5% (Min. +0.45/-0.40 mm ) —
Cold-Drawn Pipe OD 6 to 10 ± 0.20 mm ± 0.15 mm
＞ 10-30 ± 0.40 mm ± 0.20 mm
＞ 30-50 ± 0.45 mm ± 0.30 mm
＞ 50 ± 1% ± 0.8%
WS ≤ 1 ± 0.15 mm ± 0.12 mm
＞ 1-3 + 15% - 10% +12.5% -10%
＞ 3 + 12.5% -10% ± 10%

Note:
1. OD refers to the outer diameter or outside diameter. WS refers to the wall thickness.
2. We also supply fluid seamless steel pipes according to the deviation in ASTM standard.

Established in 1984, Jiangyin Changjiang Steel Tube Making Factory has been engaged in manufacturing seamless steel pipes for about 30 years in China. We mainly supply fluid steel pipe, structure pipe, high pressure boiler pipe, API pipe, marine pipe, alloy pipe, tubing, casing, line pipe, etc. Our products are extensively used in metallurgy, port, ship-breaking, manufacturing, real estate, chemical engineering, transportation and other industries. JST fluid seamless steel pipes are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.
