Petroleum Cracking Pipe

Petroleum Cracking Pipe
Inquire Now

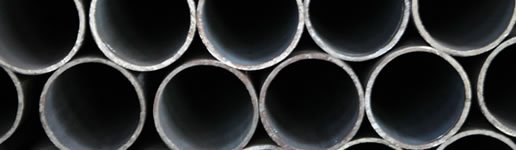

Petroleum cracking pipe is a kind of strip steel product with hollow section and no seam joint around. As an economic cross section steel material, petroleum cracking tube is extensively used in manufacturing structural and mechanical parts, such as petroleum drill rod, automobile transmission shaft, bicycle frame and steel scaffold used in construction. JST petroleum cracking pipe can also be used as seamless steel tube applicable in refinery, heat exchanger, pipeline and other applications.

Advantages of Petroleum Cracking Tube
  • We use petroleum cracking pipes to make ring-shaped work pieces. This can improves the material utilization rate, simply the manufacturing procedures, and save material and processing time.
  • Petroleum cracking tube can be used for producing rolled bearing ring and lifting jack kit.
  • This seamless pipe is also an inevitable material in conventional weapons. We can use petroleum cracking pipes to produce gun barrels.
  • According to the shape of cross sectional area, it can be divided into round pipe and special pipe. On the premise of same perimeter, round petroleum cracking tube can convey more fluid.
Delivery Status of Petroleum Cracking Pipe
  • 10# and 20#: hot-rolled finish rolling, clod-rolled normalizing
  • 15CrMo: hot-rolled finish rolling and tempering, clod-rolled normalizing and tempering
  • 1Cr2Mo: hot-rolled finish rolling and tempering, clod-rolled normalizing and tempering
  • 1Cr5Mo: annealing
Dimension Deviation of Petroleum Cracking Tube
Type Dimension Allowable Deviation
Hot-Rolled Pipe Outside Diameter ≤ 159 ± 1.00%
> 159 ± 1.25%
Wall Thickness ≤ 20 ± 12.5%
> 20 ± 10.0%
Cold-Drawn Pipe Outside Diameter ≤ 30 ± 0.20
30-50 ± 0.30
> 50 ± 0.8%
Wall Thickness ≤ 3 + 12%
- 10%
> 3 ± 10%
Mechanical Properties of Petroleum Cracking Pipe
Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Impact Force (J) Brinell Hardness (HB) Delivery Status
20 410-550 ≥ 245 ≥ 21 ≥ 39 / Normalizing
15CrMo 440-640 ≥ 235 ≥ 21 ≥ 47 ≤ 170 Normalizing and Tempering
1Cr2Mo ≥ 390 ≥ 175 ≥ 22 ≥ 92 ≤ 179 Normalizing and Tempering
1Cr5Mo ≥ 390 ≥ 195 ≥ 22 ≥ 92 ≤ 187 Annealing

Founded in 1984, Jiangyin Changjiang Steel Tube Making Factory is a professional manufacturer of petroleum cracking tubes in China. Our products also cover casing, tubing, line pipe, drill pipe, high pressure boiler pipe, marine pipe, cylinder tube, hydraulic prop tube, fluid pipe, structure pipe, etc. They have passed API 5CT, API 5L, API 5DP, CCS, LR, DNV, ABS, NK, BV, GL, PED, SGS, ISO9001:2000 and ISO14001:2004 certifications. Our petroleum cracking pipes have won widespread praise and recognition by customers.
