Structural Tube

Structural Tube
Inquire Now
Standards for Structural Steel Pipe: ASTM A53 and ASME SA53

We mainly produce various grades of structural steel tubes, such as A53A, A53B, SA53A and SA53B.

Applications
  • Structural tube is often used in general structure and mechanical structure.
  • Structural steel pipe can be used for manufacturing pipeline, vessel, equipment, pipe fittings and mechanical structured seamless steel tubes.
  • JST structural steel tube can be used in construction, such as hall structure, sea trestle, airport structure, dock, security door, garage door, strengthened lining steel window and door, interior partition wall, structure of cable bridge and highway safety guard, railing, decoration, residence, decorative pipes, etc.
  • Structural steel pipe can also be used in agriculture (agricultural equipment, engineering, material processing, machinery parts, etc.) and auto parts (car and bus manufacturing and transportation).
  • JST structural steel tube is applied in transportation, such as pedestrian railings, guardrails, square structure, road equipment, fence, and so on.
  • Structural steel pipe can also be utilized in machinery, solar stand, offshore oilfield, mining equipment, electrical and mechanical hardware, mining, supermarket shelves, furniture, school equipment, etc.

Advantage Compared to other similar construction pipes, JST structural steel tubes enjoy many advantages in design, use, construction and integrated economy aspects. They are of low cost and are be moved at any time.

Material for Structural Steel Pipe
  • Seamless: Pipe Billet (Hot Rolled or Con-casting), Mother Pipe
  • Welded: Hot Rolled Steel Coil (HRC), Cold Rolled Steel Coil (CRC), Pre-painted Galvanized Steel Strip
Production Process of Structural Steel Tube
  • Seamless: Hot Rolled, Hot Explored
  • Welded: ERW (Electrical Resistance Welding), HFW (High Frequency Welding)
  • Coating: Hot-dipped Galvanized, Electrical Galvanized
Dimension of Structural Steel Pipe
  • Hollow Structural Steel Tube
  • Square: (10 mm × 10 mm) to (500 mm × 500 mm)
    Rectangular: (10 mm × 20 mm) to (600 mm × 400 mm)
    Round: 1/8" - 4"
    Wall Thickness: 0.5 mm to 20.0 mm
    Length of Hollow Structural Steel Pipe: 0.3 mtr to18 mtr as customer required
  • Scaffolding Pipe
  • Outer Diameter: 38 mm, 42 mm, 48.3 mm to 48.6 mm
    Wall Thickness: 2.0 mm, 2.5 mm, 2.75 mm, 3.0 mm, 3.25 mm, 3.85 mm, 4.0 mm
    Length of This Structural Steel Tube: 0.3 mtr to 18 mtr
    Pipe End: Square Cut, Burr Removed
    Surface: Lightly Oiled, Hot-Dipped Galvanized, Electro Galvanized, Black
    Thermal Treatment: Bright Annealed, Black Annealed

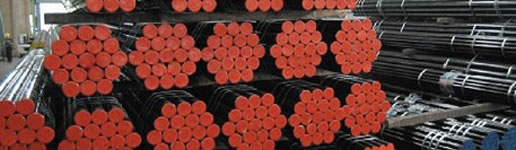

Packaging of Structural Steel Pipe We package our structural steel tubes with plastic plugs in both ends. We adopt hexagonal bundles of pipes (max. 2, 000 kg) with several steel strips. Two tags are on each bundle. We can also wrap products in waterproof paper, PVC sleeve and sackcloth with several steel strips.

Parameters of Structural Steel Pipe
Item Numerical Value
Outside Diameter and Wall Thickness It should be in accordance with GB/T17395 standard for seamless steel tunes.
Length Hot-rolled pipe is 3 m to 12 m. Cold-rolled or cold-drawn steel pipe is 2 m to 10.5m.
Tortuosity

1.       When the wall thickness is equal to or less than 15 mm, it should mot exceed 1.5 mm/m.

2.       When the wall thickness is equal to or less than 15 mm to 30 mm, it should mot exceed 2.0 mm/m.

3.       When the wall thickness is more than 30 mm or the outside diameter is equal to or more than 351 mm, it should mot exceed 3.0 mm/m.
Allowable Deviation of Outside Diameter and Wall Thickness
Type Size Allowable Deviation
General Class High Class
Hot-Rolled Pipe Outside Diameter < 50 ± 0.50 mm ± 0.40 mm
≥ 50 ± 1 % ± 0.75 %
Wall Thickness < 4 ± 12.5 % (Min. ± 0.40 mm) ± 10 %  (Min. ± 0.30 mm)
≥ 4-20 +15%, -12.5% ± 10 %
> 20 ± 12.5% ± 10%
Cold-Drawn Pipe Outside Diameter 6-10 ± 0.20 mm ± 0.10 mm
>10-30 ± 0.40 mm ± 0.20 mm
> 30-50 ± 0.45 mm ± 0.25 mm
> 50 ± 1 % ± 0.5 %
Wall Thickness ≤ 1 ± 0.15 mm ± 0.12 mm
>1-3 + 15 %, - 10 % ± 10 %
>3 + 12.5, - 10 % ± 10 %
Note: For the hot-rolled pipes with the outside diameter of not more than 351 mm, the allowable deviation is ± 18 %.

Founded in 1984, Jiangyin Changjiang Steel Tube Making Factory is a professional manufacturer of structural steel tubes in China. Our products mainly cover scaffolding pipe, casing, tubing, line pipe, drill pipe, high pressure boiler pipe, marine pipe, cylinder tube, hydraulic prop tube, fluid pipe, etc. They have passed API 5CT, API 5L, API 5DP, CCS, LR, DNV, ABS, NK, BV, GL, PED, SGS, ISO9001:2000 and ISO14001:2004 certifications. JST structural steel pipes have won widespread praise and recognition by customers.
